Basic Info.
Product Description
This is Rhino new technology three in one handheld portable fiber laser cleaning machine that have 1000w/1500w/2000w/3000w for your option.
Its function is surface rust and painting cleaning on all kinds of metal materials like Stainless steel, Carbon steel, Aluminum, Stone, Metal etc
Laser cleaning machine is mainly used in Printing Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Hotels, Home Use, Garment Shops, Food & Beverage Shops, Construction works , Restaurant, Machinery Repair Shops, Advertising Company, Food Shop, Energy & Mining, Retail, Building Material Shops, Other
Also different working bed size can be customized as per customer requirements !
Technical Parameters
| Model | RC-3000W hand held laser cleaning machine |
| Power | Raycus 3000W |
| Cable length | 10m/15m/20m |
| Fiber wave length | 1064μm |
| Fiber length | 10m |
| Spot size | 0.02mm |
| Working mode | Continue |
| Laser frequency | 1-10000HZ |
| Cleaning size one time | 10-160mm |
| Location | Red dot |
| Protective gas | Nitrogen |
| Working speed | 0-10m/min |
| Cooling | Industry constant temperature chiller |
| Working temperature | 15~35ºC |
| Working humidity | <70% |
| Working voltage | 220V/380V |
| Total power | 7.5KW |
| Cable length | 10m |
| Warranty | 2 years for free and long life time service |
| Price | FOB QINGDAO 3000-8000USD |
| Net weight | 106kg - 225kg |
| Gross weight | 138kg- 280kg |
| Package size | 2cbm |
Cleaning efficiency :
| Model &Power | Cleaning width | cleaning rust speed | cleaning coating speed | Gas pressure | Voltage |
| Basic model 1000w | 0-200mm | 10m2/H | 5M2/H | >= 0.5-0.8MPA | 220V 50HZ/60HZ |
| Standard model 1500w | 0-200mm | 20m2/H | 10M2/H | >= 0.5-0.8MPA | 220V 50HZ/60HZ |
| Pro model 2000w | 0-200mm | 40M2/H | 20M2/H | >= 0.5-0.8MPA | 220V 50HZ/60HZ |
| Flagship model 3000w | 0-200mm | 80M2/H | 40M2/H | >= 0.5-0.8MPA | 220V 50HZ/60HZ |
Fiber laser source specifications:
| Max average power(w) | 200 | 300 |
| Output central wavelength(nm) | 1064±5 | 1064±5 |
| Bean quality(m²) | ≤10 | ≤10 |
| power adjustment range(%) | 10-100 | 10-100 |
| Output power instability(%) | ≤5 | ≤5 |
| Pulse repetition rate(KHZ) | 10-50 | 20-50 |
| Pulse length(ns) | 90-130 | 130-140 |
| Max pulse energy(MJ) | 10 | 12.5 |
| Fibre length(m) | 5/10 | 5/10 |
| Laser safety classification | 4 | 4 |
| cooling method Water cooling | Water cooling | Water cooling |
What laser cleaning machine can do :
Applications of Laser Cleaning Machines
Laser cleaning machines offer a non-contact and environmentally friendly method of cleaning a variety of surfaces. They are particularly useful in delicate operations where traditional methods might cause damage.
-
Rust Removal: Efficiently cleans rust from metal surfaces without abrasion.
-
Paint and Coating Removal: Strips away unwanted paint and coatings.
-
Artifact Cleaning: Safely cleans historical artifacts preserving their integrity.
-
Surface Preparation: Prepares industrial surfaces for further processing.
-
Contaminant Removal: Eliminates grease, oil, or oxides without harsh chemicals.
-
Restoration: Gently restores delicate surfaces of statues or monuments.
Laser cleaning machines can work on a variety of materials, including:
-
Metals such as steel, aluminum, copper, and titanium.
-
Stone materials like marble, granite, and limestone.
-
Plastics and composites.
-
Historical artifacts made of delicate materials.
-
Painted surfaces.
-
Oxides and rust on different substrates.

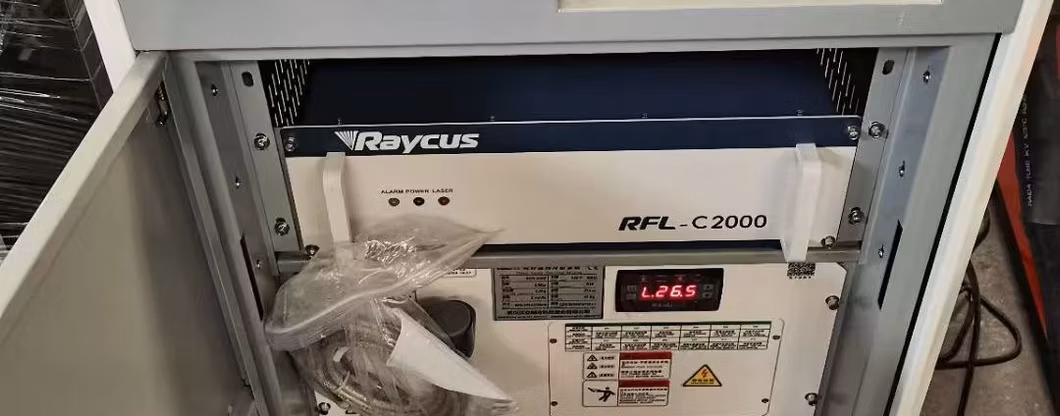

Machine detail photos:
Laser cleaning machine cleaning effect show :
Machine Package:
Rhino fiber laser cleaning Machine package process:
1. Firstly machines are inspected by engineers make sure no any problem then we have special workers who are professional for machine pacakge. We use plastic film cover machnes to avoid moisture on the sea then we use strong stap to tight machine all components well like gantry,table,dust collector and control panel etc.
2.Then we will move it on the plywood bottom bracket.
3.Setting it in the proper location then use air nail to fix machine legs well on the bracket. It will take about 1-2 hours then we make a full package with plywood box.
4.Finally we use steel strap tight the whole plywood box and print shipping mark and something else as per customer requirement on outside of box. Now the whole process is finished well and it will take 2-3 hours to package it perfectly.
Our Services(why choose Rhino cnc)
Guarantee & After Sales Service:
1) Two years warranty under machine normal use we supply maintenance for life freely.
2) 24 hours technical support by phone, email ,MSN,Skype or Remote.
3)Free training to make sure you can master the operation of machine,also we will send manual,instruction,teach video with machine together.
4)English vesion operation manual,popular and easy to understand and handle
Company Information
Company Advantages
1, First-class factory meets international production plant's standard, ten years' manufacture and export experiences
2, Own most advanced domestic cnc machining production equipments
3, 5-9 days machine production time, one year warranty and lifetime free maintenance
4, OEM and ODM services available
5, Same quality, our price and service are better; Same price, our quality and service are better
6, with CE, FDA, SGS, ISO9000 certifications
FAQ:
Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of laser cleaning machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.
Q3:Is there any damage to the cleaning material?
Depends on what type you need, the pulse type has a finer cleaning effect, and the continuous type has a faster cleaning speed, Relative damage of material, pulse type is less than continuous type.
You can tell us the material you want to clean, we will give you a test, we can give you a video call during the test so that you can see the cleaning effect more intuitively, or after the test is completed, we can send you the test video.
Q5: This model is not suitable for me, do you have more models?
Yes, we can provide a variety of models. The continuous laser cleaning machine has a trolley type; the pulse laser cleaning machine has a backpack type, a suitcase type, a trolley case type, etc. We can customize the model according to your needs.
Questions 6: What is the payment terms:
Answer: We support bank tt, LC, Western Union etc all kinds of payment way, 30% in advance and balance payment before machine delivery
Questions 7: What is the warranty time ?
Answer: Our whole machine have 3 years warranty for free and long life time service. Spindle, motor etc electronic parts have 1 years warranty for free.
Welcome to contact us if you have more requirements for above machine!
Also we can produce the cnc router according to your detail requirements!
