Basic Info.
Model NO.
YQ32-200T
Customized
Customized
Condition
New
After-sales Service
Provided
Function
Forklift Tire Press Machine
Material
Steel Material
Keyword
Forklift Solid Tire Press Machine
Color
Customer
Application
for Tire Changer
Worktable Size
Customised
Mould
8-25"
Capacity
2000kn
Voltage
220/380V
Usuage
Tire Changer
Weight
5t
Power Source
Hydraulic Power Hydraulic Press
Parameters
Customize
Type
Double Column Hydraulic Press
Certification
CCC, ISO9001, CE
Transport Package
The Machine Will Be Packed in One Plywood
Specification
machine size
Trademark
ZYZG
Origin
China
HS Code
8479899990
Production Capacity
100/Month
Product Description
Product description

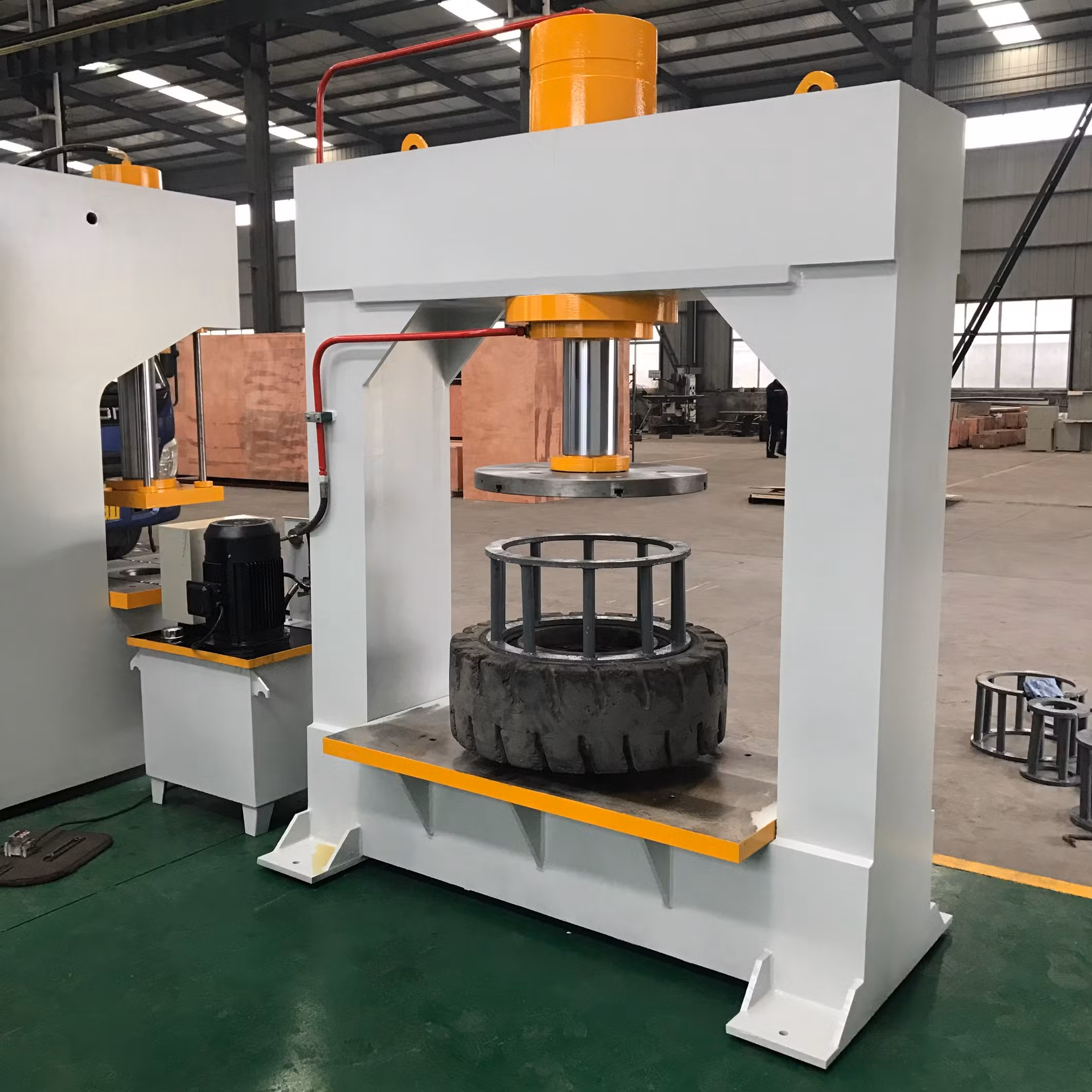

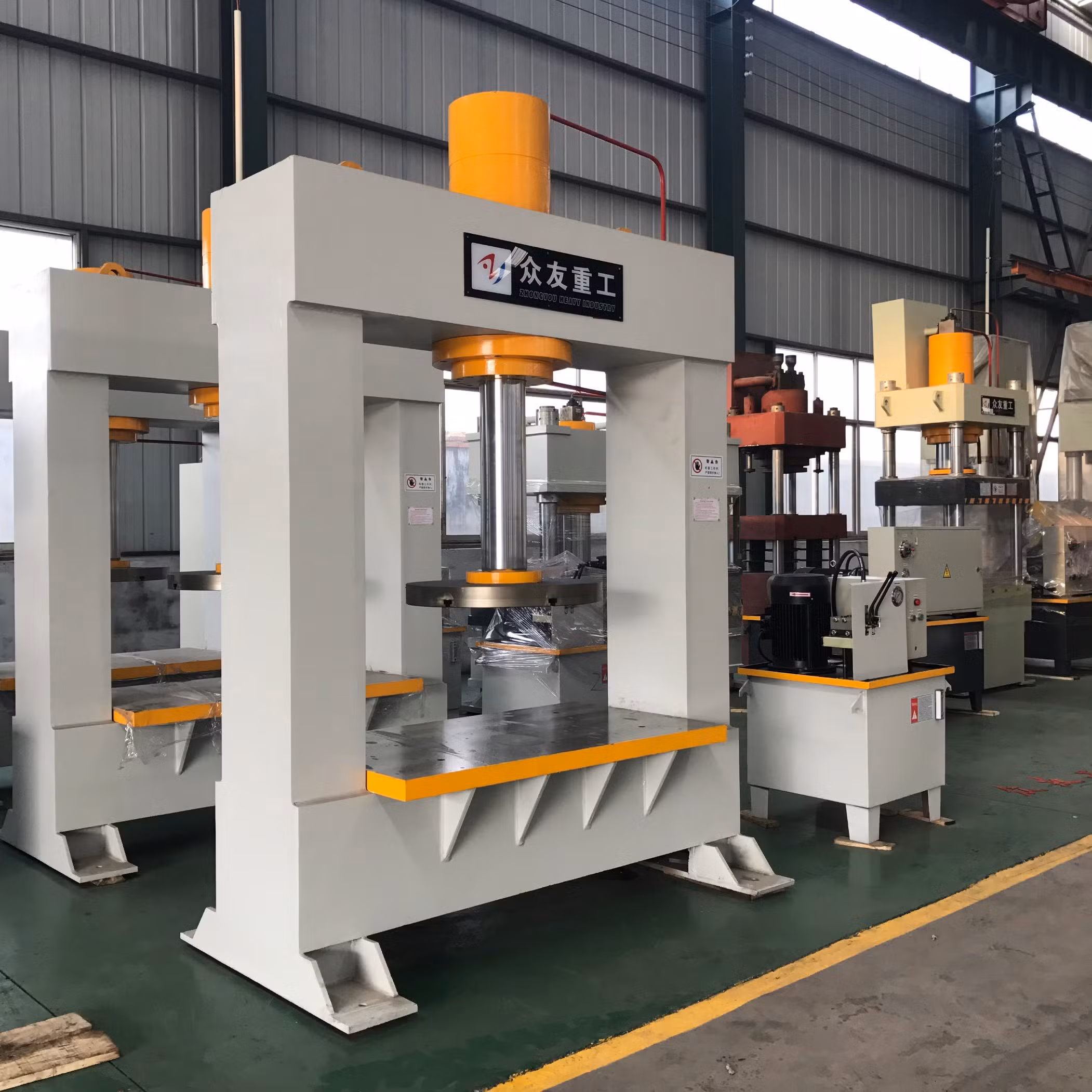

The gantry /h frame hydraulic Solid forklift tire Press machine is a kind of hydraulic press machine which is customized according to the characteristics of the tyre industry. It is mainly used for the replacement and installation of solid tires. It used to assemble and disassemble with ring rims and tires. It is mainly used for all kinds of solid tyre disassembly and tire pressure
Main features for forklift tyre press:
1. Computer optimization structure design, machine structure, simple, economical and practical.
2. hydraulic control of Hydraulic press Tyre Changer machine using cartridge valve integrated system, reliable action, long life, small hydraulic shock, reducing the connection pipe and leakage points.
3. independent electrical control system, reliable, action objective, easy maintenance.
4. use button centralized control, with adjustment, manual and semi-automatic three kinds of operation.
5. through the operation panel selection, can achieve the process, constant pressure two forming process, and has a pressure and other functions.
6. slider of the working pressure, no-load fast down and slow travel range can be adjusted according to the needs of the process.
Technical parameters of forklift tyre press
| Parameter name | Unit | YM-300T | Ym-100T | Ym-120T | Ym-160T | Ym-200T |
| Nominal pressure | KN | 3000 | 1000 | 1200 | 1600 | 2000 |
| Effective stroke | mm | 600 | 500 | 500 | 600 | 600 |
| Opening height | mm | 1800 | 1000 | 1000 | 1200 | 1200 |
| size of worktable | mm | 2200*1500 | 1000*800 | 1000*800 | 1400*800 | 1400*800 |
| The motor power | KW | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
Method of use
When using, firstly select the tooling correctly, then place the wheel hub on the workbench, press the tool head to press the tire on the tire, press it into the wheel hub, and finally load the snap ring with the guide ring. Different types of tires and wheels require different tooling. Users should choose tooling before disassembling the tires, and then disassemble and assemble them. This will be very convenient and quick.
Packaging & Delivery
used disassembly changer solid forklift tire press machine packing:
1. inner layer is made of plastic film rust-proof packaging,
2. the embossing machine outer layer is reinforced by reinforcing the synthetic board
3. separate container can be used.
Port: qingdao
Our services
Our services are divided into pre-sale, sales, after-sale three parts.
Pre-sale
to provide detailed advice, as well as solid forklift tire press machine product introduction, the program recommended to the factory inspection, as far as possible to meet your questions and needs.
Sales
can support samples, support diversified payment methods, the solid forklift tire press machine production process transparent, standardized and quickly stocking.
After-sales
support diversification guidance, training, voice and video images, and even solid forklift tire press machine overseas site installation, on-site training, home maintenance, continuous return visit customers concerned about the use
Certification
FAQ
used disassembly changer solid forklift tire press machine FAQ
1.Whether the independent production and processing?
YES!We have been done it for 16 years in the hydraulic oil press machine field.
2.Whether to provide technical support?
YES!We can provide free design, drawings manuals, and even technical staff overseas field guidance when needed.
3.Whether it is prone to problems?
NO! Electric welding of high precision Usage of high-tech boring machines for extreme precision partsProduction workers have rich experience over the yearsEach of the factory products after repeated testing adjustment
4.Whether to accept cash on delivery?
Sorry,you have to make a payment as described .
5.Whether to accept the site inspection?
Sure!
