Product Description

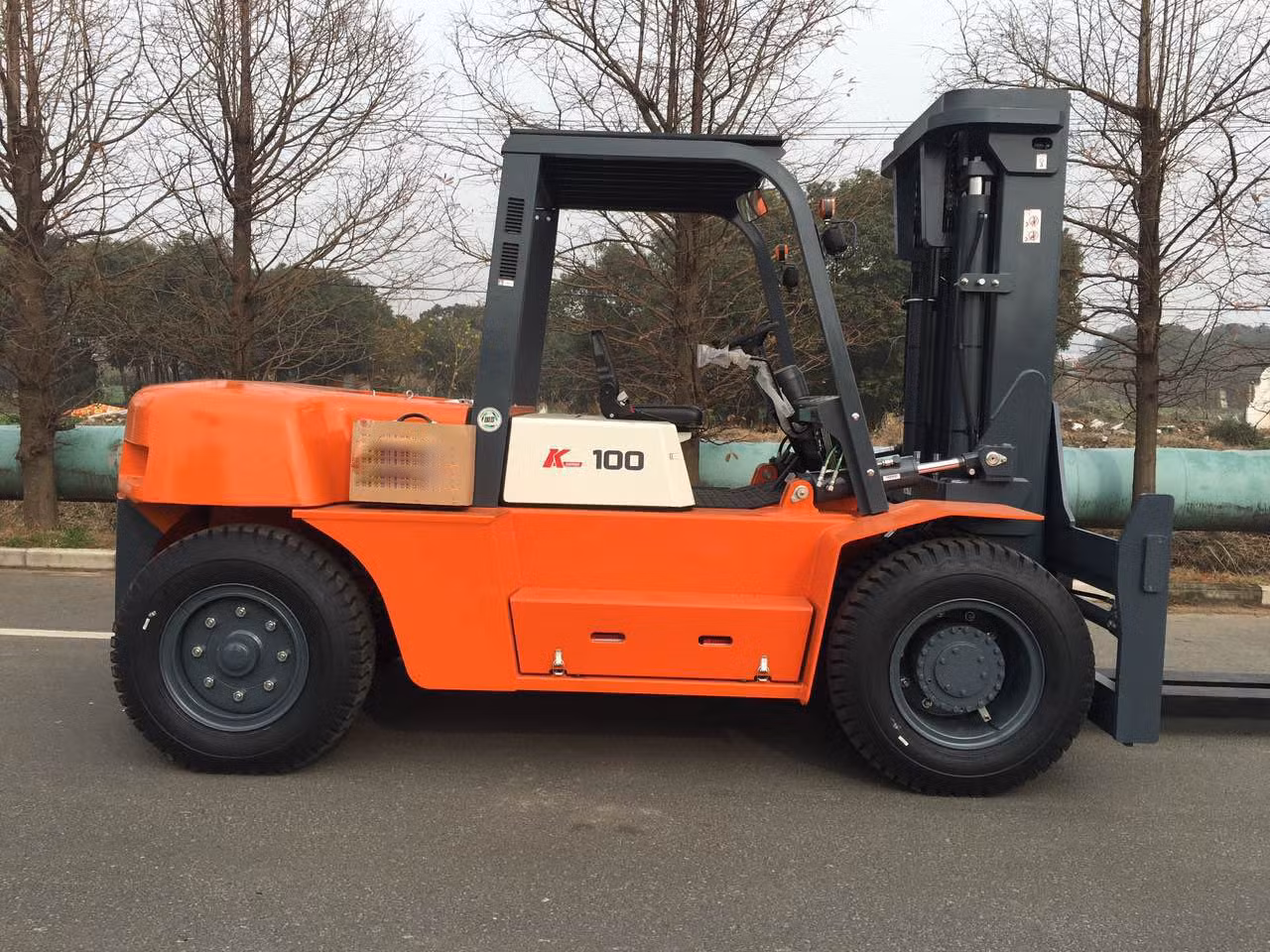

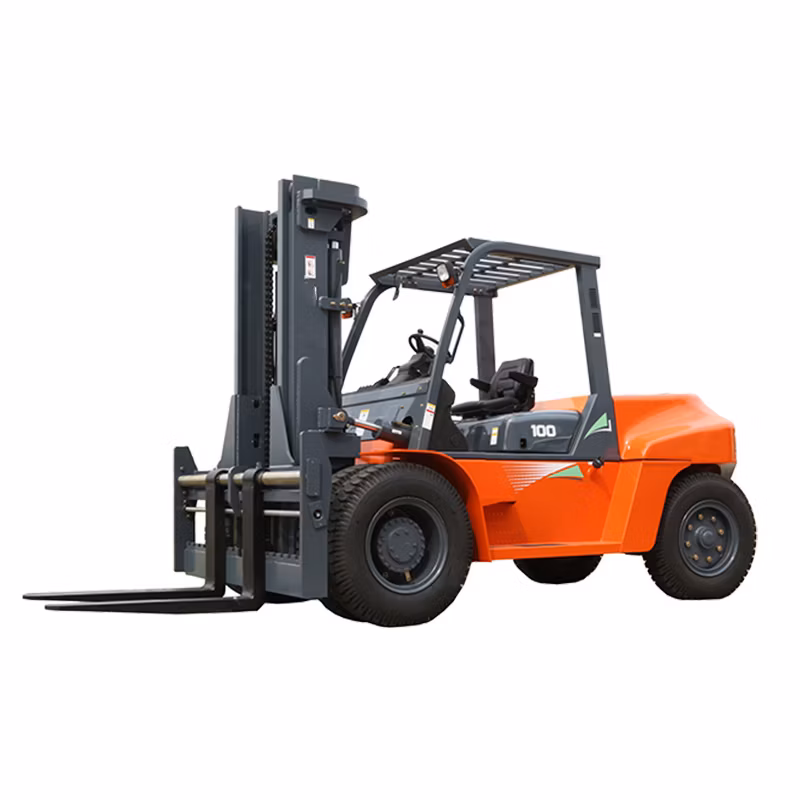

HELI 10 ton diesel engine forklift Zoomlion forklift CPCD100 with solid tire side lifter for sale
1. High quality
2. Competitive price
3. Fast deliveryPerformance
Performance
1. Digital intelligent drive-monitoring system can facilitate obtaining an operating data of forklifts so as to achieve the whole-process control.
2. Full hydraulic steering system reduces the operator's fatigue greatly; It uses a horizontal oil cylinder on the compact steering axle, and garantees a steering reliability.
3. The classically YTO ASF space frame structure applies an ergonomic & aesthetic design with an elegant outlook, a compact structure, and a comfortability in operation.
4. The optimized rail section design of the mast has the driver enjoyed a wide-view.
RELIABILITY
The full-floating hydraulic transmission gearbox, with 4WD switch function, can provide higher running speed and stronger gradeability;
Wide-base deep tread tyres
The drive axle is equipped with wide-base deep tread tires, wet brake, differential mechanism with electronic lock, as well as reinforced steering drive axle, and can better adapt to special working conditions.
HANGCHA be with you at every stage Efficient, reliable solutions for your demands
With Hangcha you can meet all Tier 4f emissions standards which provides customer demands for value, innovation and performance. The technologies include common rail fuel systems, diesel oxidation catalysts (DOC) and diesel particulate filters (DPF). Designed and optimised to every engine model, our forklift truck maximises efficiency and reliability.
Interactive instrument: The instrument adopts 4.0-inch color LCD display with four interactive buttons, and has one CAN bus communication function. The communi-cation protocol is compatible with SAE J1939 standards.
PRODUCTIVITY
The new Dynamic load sensing hydraulic steering system contributes to reduce loss of hydraulic and improve energy
efficiency.The new efficiency lighting system employs LED illuminant and new type reflector to reduce energy consumption, improve significantly illumination performance and prolong work time.
| Model | CPCD50 | CPCD60 | CPCD70 | CPCD85 | CPCD100 | |
| Power type | Diesel | |||||
| Load capacity | kg | 5000 | 6000 | 7000 | 8500 | 10000 |
| Load center | mm | 600 | ||||
| Pallet fork maximum height (with block shelf) | mm | 4400 | 4400 | 4400 | 4420 | 4217 |
| Maximum lifting height | mm | 3000 | ||||
| Free hoisting height | mm | 200 | ||||
| Overall height (upper frame protection) | mm | 2450 | 2450 | 2450 | 2560 | 2560 |
| Full length (with cargo fork) | mm | 4710 | 4790 | 4840 | 5180 | 5430 |
| Full width | mm | 2045 | 2045 | 2045 | 2165 | 2165 |
| The minimum ground clearance (the door) | mm | 200 | 200 | 200 | 250 | 250 |
| The minimum turning radius (outer) | mm | 3240 | 3300 | 3370 | 3650 | 3900 |
| Least square channel width | mm | 3200 | 3260 | 3330 | 3590 | 3860 |
| Pallet fork a*b*c | mm | 1220*150*55 | 1220*150*60 | 1220*150*65 | 1220*170*70 | 1220*175*80 |
| Maximum speed (full/empty) | km/h | 24/29 | 24/28 | |||
| Maximum traction(full/empty) | KN | 63 | 63 | 62 | 60 | 58 |
| Maximum gradeability (full/empty) | % | 38/19 | 35/19 | 32/19 | 23/20 | 21/20 |
| Tire type (before/after) | 2/2 | |||||
| Engine manufacturers/models | CA6110 | |||||
| Rated power | KW/rpm | 83/2000 | ||||
| Rated torque | Nm/rpm | 450/1400-1500 | ||||
| Total water (oil) | kg | 8300 | 9050 | 9650 | 1150 | 12660 |
